JST SUR 0.8mm Pitch IDC (Insulation Displacement Connectors) Custom Wire Harness :

CSE is the professional manufacturer and supplier of custom wire harness in Taiwan since 1977. All the production processes and standard operating procedures are followed JST operating guide and producted by JST original ID machine in order to provide the best technological quality of JST SUR custom products and services for our customers.





  The world's first 0.8mm pitch wire-to-board insulation displacement connector.
*Although this shrouded header has locking features for its mating receptacle, there are no holes in the header shroud that would adversely effect vacuum gripping equipment.

Product Profile
Series SUR connector
Category Insulation Displacement Connectors (Wire-to-Board type)
Type Disconnectable type
IDC style, Compact type, Low-profile type
Specification
Pitch 0.8 mm
Current rating 0.5A (AWG#32)
0.2A (AWG#36)
Voltage rating 30V
PC board
mounting direction
Top entry, Side entry


CSE provides high quality of JST SUR custom harness production solution from your document of custom wire harness with suitable UL wire to meet your requirement .

The standard operating procedures are followed JST operating guide in order to provide the best technological quality of JST SUR custom products.

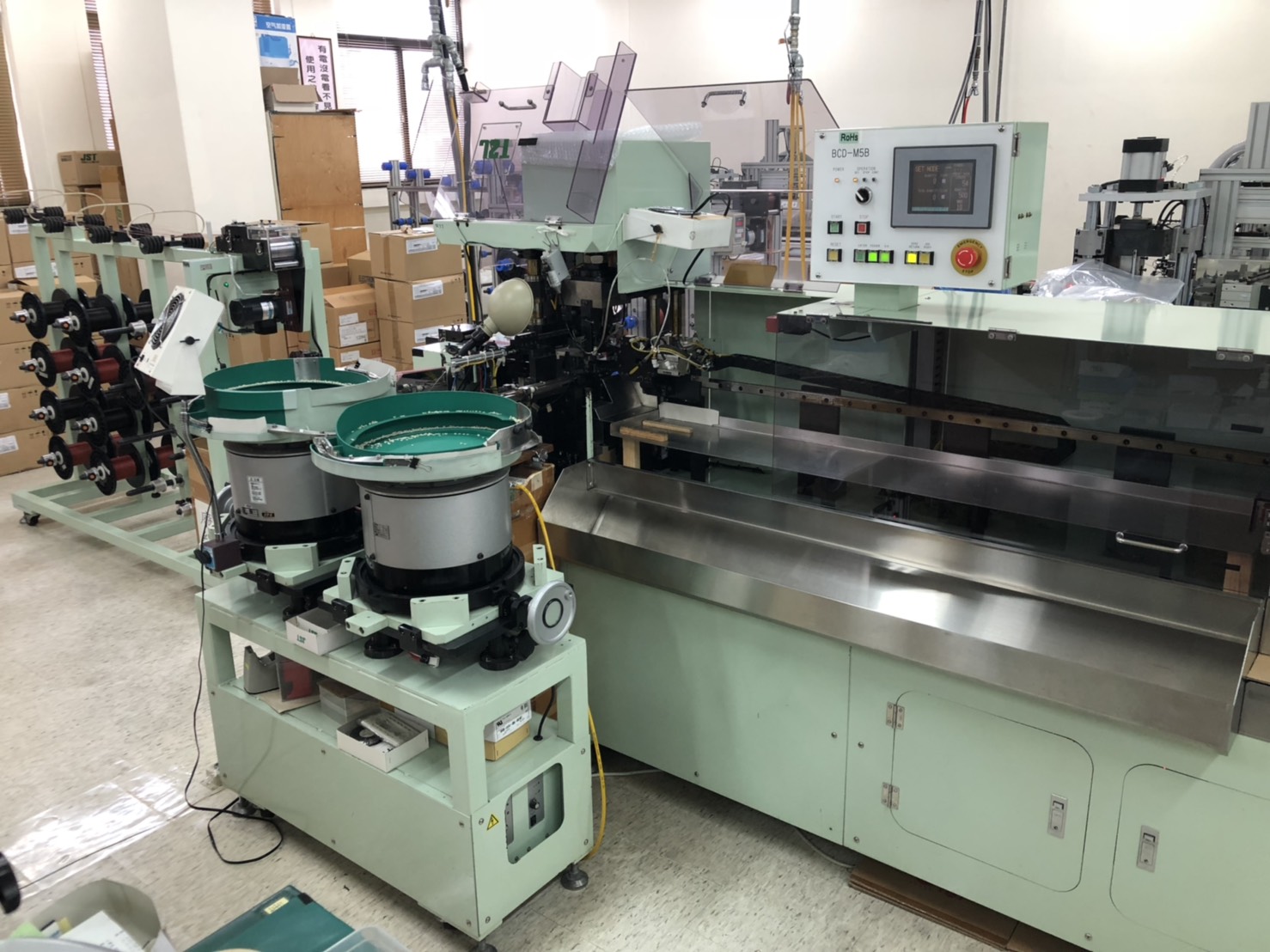

We provide high-quality custom wire harness mass production services of SUR series of with JST original automated equipment.
